Biceps Tendinopathy Iontophoresis Protocol: Proximal Shoulder vs. Distal Elbow Evaluation and Rehabilitation
“Biceps tendonitis” can describe pain at two anatomically and clinically different locations:
- Proximal long-head biceps tendinopathy at the front of the shoulder
- Distal biceps tendinopathy near the tendon’s insertion at the anterior elbow
These presentations should not receive the same examination, electrode placement, rehabilitation program, or referral pathway.
The long-head biceps tendon passes through the bicipital groove and attaches inside the shoulder near the superior labrum. Proximal symptoms frequently coexist with rotator-cuff, subscapularis, labral, pulley, or shoulder-instability pathologies. Distal symptoms arise near the radial tuberosity and must be distinguished from partial or complete distal tendon rupture.

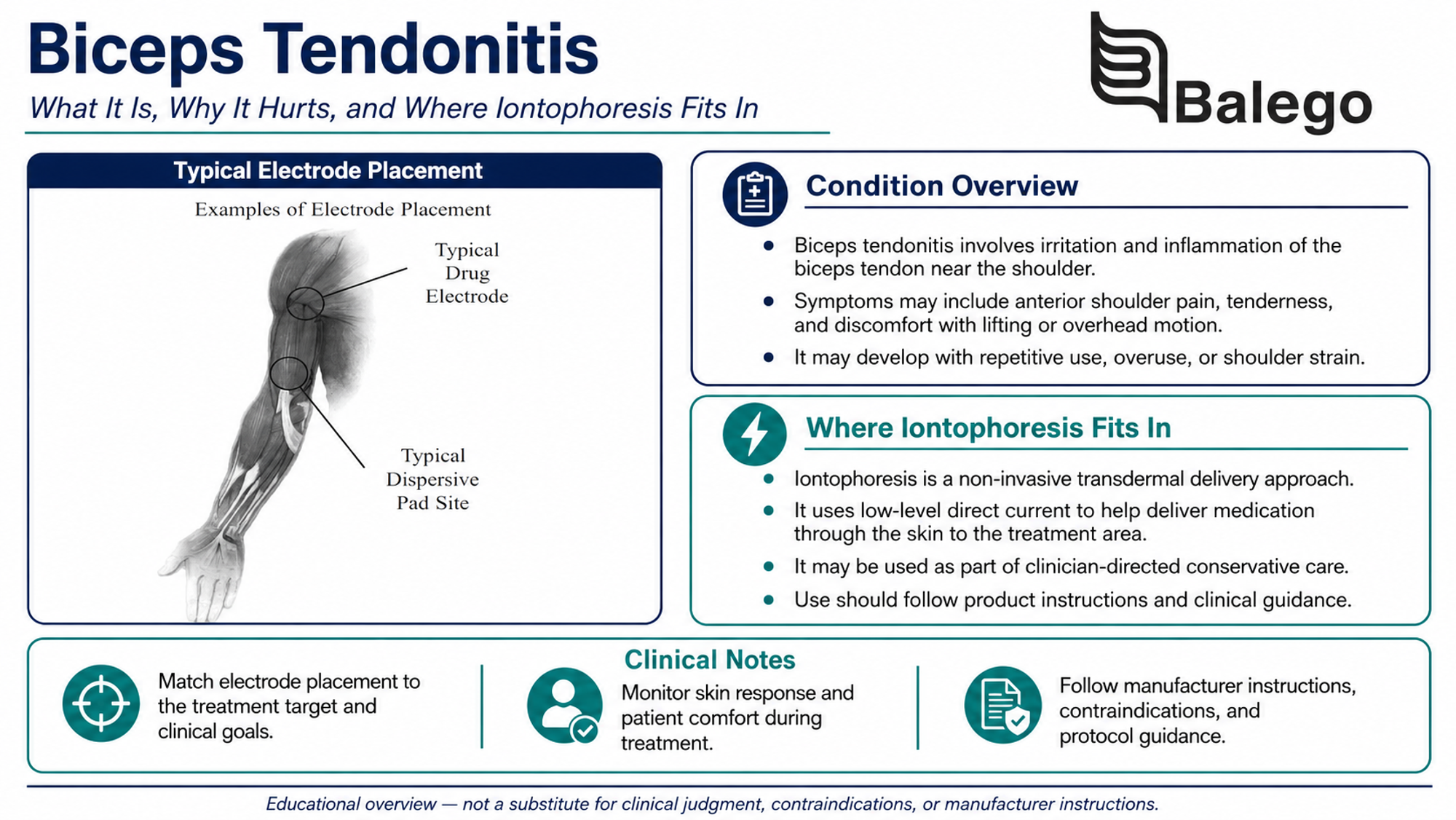

Iontophoresis may be considered when a licensed healthcare professional identifies a small, superficial treatment target and a prescriber orders an appropriate ionic medication. Available evidence does not support presenting it as the principal treatment for biceps tendinopathy.
Education, activity modification, progressive tendon loading, rotator-cuff and scapular exercise, and task-specific rehabilitation should remain central to care.
Clinical notice: Medication, formulation, concentration, polarity, electrical dose, electrode selection, placement, treatment frequency, and rehabilitation progression require an appropriate order and professional judgment. Follow the current medication, controller, patch, and electrode instructions for use.
Biceps Tendinopathy at a Glance
| Clinical question | Practical answer |
|---|---|
| Are proximal and distal biceps tendinopathy the same condition? | No. Proximal symptoms involve the anterior shoulder; distal symptoms involve the anterior elbow. |
| Which presentation is more common? | Long-head biceps pathology at the shoulder is more commonly discussed and frequently accompanies other shoulder disorders. |
| Is bicipital-groove tenderness diagnostic by itself? | No. It must be combined with the history, loading tests, regional shoulder examination, and sometimes imaging. |
| Are Speed’s and Yergason’s tests definitive? | No. Their accuracy varies, and test clusters are more useful than one isolated maneuver. |
| When is distal biceps pain urgent? | After a sudden pop, bruising, deformity, or substantial loss of supination or elbow-flexion strength. |
| Is iontophoresis proven as first-line care? | No. Evidence is limited and conflicting. |
| Is 40 mA-min the universal biceps dose? | No. The appropriate dose follows the medication order and selected product instructions. |
| What is the rehabilitation foundation? | Load modification followed by progressive biceps, rotator-cuff, scapular, and task-specific exercise. |
| What should determine continuation? | Objective improvement in pain-provoking tasks, strength, motion, function, and skin tolerance. |
Proximal vs. Distal Biceps Tendinopathy
| Feature | Proximal long-head biceps tendinopathy | Distal biceps tendinopathy |
|---|---|---|
| Primary pain location | Front of the shoulder, often near the bicipital groove | Front of the elbow, commonly deep near the radial-tuberosity region |
| Common aggravating activities | Overhead reaching, throwing, swimming, lifting, carrying, shoulder flexion, resisted elbow flexion | Lifting with the palm up, resisted supination, elbow flexion, tool use, pulling |
| Common associated pathology | Rotator-cuff disease, subscapularis injury, pulley lesion, labral pathology, instability | Partial distal tendon tear, complete rupture, radial bursitis, brachialis or forearm disorders |
| Useful loading tests | Shoulder flexion, elbow flexion, supination, overhead task | Supination and elbow flexion at different angles |
| Primary rupture concern | Proximal long-head rupture | Distal tendon avulsion |
| Electrode-placement challenge | Curved anterior shoulder and tendon depth within the groove | Deep tendon near the antecubital crease and neurovascular structures |
| Rehabilitation emphasis | Biceps loading plus shoulder, rotator-cuff, scapular, and overhead function | Elbow-flexion and supination capacity plus lifting and occupational function |
“Tendonitis” vs. Tendinopathy
The phrase "biceps tendonitis" remains useful for search visibility, but "biceps tendinopathy" is generally a better umbrella term.
“Tendonitis” implies that acute inflammation is the central process. Persistent tendon symptoms may instead involve a combination of:
- Load intolerance
- Structural tendon changes
- Tenosynovial irritation
- Pain sensitivity
- Associated shoulder pathology
- Reduced strength or endurance
- Repeated exposure exceeding present capacity
This distinction matters because medication delivery may modify symptoms but cannot independently restore tendon capacity, shoulder control, or tolerance for lifting and overhead work.
Proximal Long-Head Biceps Tendinopathy
Typical Proximal Presentation
Possible findings include:
- Anterior shoulder pain
- Familiar pain near the bicipital groove
- Pain with overhead reaching
- Pain while lifting or carrying in front of the body
- Pain during resisted shoulder flexion
- Pain during resisted elbow flexion or supination
- Symptoms during throwing, swimming, racquet sports, or manual work
- Clicking, slipping, or instability sensations
- Night pain
- Coexisting rotator-cuff weakness or painful shoulder elevation
Long-head biceps disease often occurs with rotator-cuff pathology rather than as a completely isolated disorder. Increasing rotator-cuff tear size has been associated with more extensive long-head biceps abnormalities.Proximal Biceps Differential Diagnosis
| Possible condition | Distinguishing considerations |
|---|---|
| Rotator-cuff–related shoulder pain | Painful elevation, external-rotation or abduction weakness, cuff-related loading symptoms |
| Subscapularis tear | Internal-rotation weakness, positive lift-off or belly-press findings, possible biceps instability |
| SLAP or labral disorder | Deep mechanical pain, clicking, throwing-related symptoms or instability |
| Biceps-pulley lesion | Pain or instability associated with subscapularis or rotator-interval pathology |
| Adhesive capsulitis | Marked restriction of passive and active shoulder motion |
| Glenohumeral osteoarthritis | Stiffness, crepitus and reduced joint motion |
| Acromioclavicular-joint pain | Superior shoulder tenderness and pain with cross-body loading |
| Cervical radiculopathy | Neck symptoms, radiating pain, sensory change, weakness or reflex findings |
| Proximal humeral injury | Trauma, bone tenderness and substantial functional loss |
| Proximal long-head rupture | Sudden pop, bruising, muscle-belly deformity or “Popeye” appearance |
| Referred visceral pain | Symptoms that do not behave consistently with musculoskeletal shoulder loading |
Red Flags for Proximal Symptoms
Prompt medical evaluation is appropriate when there is
- Significant recent trauma
- A sudden pop with bruising or visible deformity
- Substantial new weakness
- Inability to raise the arm after trauma
- Suspected fracture or dislocation
- Fever, redness, drainage, or infection concern
- Progressive neurological weakness
- Unexplained systemic symptoms
- A rapidly enlarging mass
- Chest pain, shortness of breath, or nonmechanical referred symptoms
A proximal biceps rupture may not always require surgical repair, particularly in lower-demand adults, but it warrants evaluation because associated rotator-cuff disease is common.
Distal Biceps Tendinopathy and Tear Screening
Typical Distal Presentation
Distal biceps tendinopathy may produce the following:
- Deep anterior-elbow pain
- Pain with resisted forearm supination
- Pain while lifting with the palm facing upward
- Pain with resisted elbow flexion
- Tenderness near the distal tendon
- Symptoms during pulling, carrying, screwdriver use, or weight training
- Reduced tolerance for repeated lifting
- Pain without the dramatic bruising or deformity of a complete rupture
The distal tendon is a deep anterior-elbow structure. Distal tendinopathy, partial tears, and complete ruptures may overlap clinically, making rupture screening especially important.
Distal Differential Diagnosis
| Possible condition | Distinguishing considerations |
|---|---|
| Partial distal biceps tear | Persistent pain and weakness, particularly with supination |
| Complete distal biceps rupture | Sudden eccentric injury, pop, bruising, deformity and marked supination weakness |
| Bicipitoradial bursitis | Deep pain near the radial tuberosity, sometimes influenced by forearm rotation |
| Brachialis injury | Pain with elbow flexion without the same supination pattern |
| Radial-tunnel or posterior interosseous nerve disorder | Deep proximal-forearm pain or motor findings |
| Lateral elbow tendinopathy | Pain concentrated near the lateral epicondyle with gripping or wrist extension |
| Elbow-joint disorder | Swelling, locking, motion loss or intra-articular pain |
| Cervical referral | Neck symptoms or neurological findings |
| Fracture | Trauma with focal bone pain or major functional loss |
For lateral-elbow differential diagnosis, direct readers to our Tennis Elbow Iontophoresis Protocol.
Distal Biceps Rupture Warning Signs
Arrange prompt orthopedic assessment when the patient reports the following:
- A sudden pop during loaded elbow extension
- Immediate anterior-elbow pain
- Rapid bruising
- A change in the upper-arm contour
- A palpable gap
- Marked weakness turning the palm upward
- Marked elbow-flexion weakness
- An abnormal hook or resisted-hook examination
- Loss of function after a high-load eccentric event
Most acute complete distal ruptures in active patients are considered for operative treatment because repair generally restores more flexion and supination strength than nonoperative care. Delay can change the available surgical technique, making timely referral important.
Biceps Tendinopathy Examination Checklist
1. Clarify the History
Document:
- Exact pain location
- Sudden or gradual onset
- Traumatic mechanism
- Duration and progression
- Overhead activity
- Throwing or swimming volume
- Changes in strength training
- Work and tool demands
- Lifting position
- Palm-up versus palm-down symptoms
- Clicking, catching, or instability
- Night pain
- Bruising or deformity
- Neck or neurological symptoms
- Prior shoulder or elbow injury
- Medication use and allergies
- Relevant systemic conditions
- Patient goals
Do not label every anterior shoulder symptom “biceps tendonitis” merely because the bicipital groove is tender.
2. Map the Familiar Pain
Ask the patient to point with one finger.
Determine where the primary symptom lies:
- In the bicipital groove
- At the anterior deltoid region
- Deep within the shoulder
- At the acromioclavicular joint
- In the biceps muscle belly
- At the anterior elbow
- Near the radial tuberosity
- In the proximal forearm
- Along a neurological distribution
The treatment site should correspond to a credible diagnosis and reproducible familiar pain—not generic tenderness caused by forceful palpation.
3. Inspect
Assess:
- Shoulder and arm contour
- Bruising
- Swelling
- “Popeye” deformity
- Scapular movement
- Guarding
- Skin condition
- Surgical scars
- Elbow contour
- Muscle asymmetry
4. Measure Motion
For proximal symptoms, assess:
- Shoulder flexion
- Abduction
- External rotation
- Internal rotation
- Horizontal adduction
- Elbow and forearm motion
For distal symptoms, assess:
- Elbow flexion and extension
- Forearm supination and pronation
- Wrist motion when relevant
Marked passive shoulder restriction suggests a condition such as adhesive capsulitis rather than isolated biceps tendinopathy.
5. Assess Strength and Load Response
Depending on the location, test
- Shoulder flexion
- Elbow flexion
- Forearm supination
- Rotator-cuff external rotation
- Rotator-cuff internal rotation
- Shoulder abduction
- Scapular stabilizers
- Grip
- Functional lifting
Record whether the test reproduces the patient’s familiar symptoms and distinguish pain-limited performance from true weakness.
Proximal Biceps Clinical Tests
No single special test confirms long-head biceps pathology.
| Test | General method | Responsible interpretation |
|---|---|---|
| Bicipital-groove palpation | Palpate the tendon within the anterior groove | Familiar focal pain may support the diagnosis but has limited value alone |
| Uppercut test | Patient makes a fist and performs an upward “uppercut” against resistance | Anterior shoulder pain or a painful pop may support long-head pathology |
| Speed’s test | Resist shoulder flexion with the elbow extended and forearm supinated | Anterior shoulder pain may support the diagnosis but is not specific |
| Yergason’s test | Resist forearm supination with the elbow flexed | Pain or tendon instability may support biceps or pulley involvement |
| Resisted elbow flexion | Load the biceps at different shoulder positions | Helps connect symptoms to tendon loading |
| Resisted supination | Load the biceps’ supination function | Useful at both proximal and distal locations |
| Rotator-cuff test cluster | Evaluate internal rotation, external rotation, elevation, and lag findings | Identifies associated shoulder pathology |
| Labral or instability examination | Selected according to history | Helps identify competing or accompanying disorders |
Distal Biceps Clinical Tests
| Test | Clinical purpose | Important limitation |
|---|---|---|
| Resisted supination | Reproduces distal tendon load and assesses weakness | Pain can also arise from nearby structures |
| Resisted elbow flexion | Assesses biceps loading at the elbow | The brachialis and brachioradialis also contribute |
| Hook test | Screens for complete distal tendon rupture | An intact or partly intact structure can be misidentified |
| Resisted hook test | Adds load while examining tendon integrity | Requires training and should not replace imaging when uncertain |
| Biceps provocation test | Compares resisted elbow flexion in different forearm positions | Used primarily when partial tearing or distal pathology is suspected |
| Palpation near the radial tuberosity | Attempts to reproduce focal symptoms | The tendon is deep and surrounded by other important structures |
When Is Imaging Useful?
Proximal Long-Head Tendon
Ultrasound may be useful when:
- Clinical findings are contradictory
- Tendon subluxation or dislocation is suspected
- A full-thickness rupture is possible
- A dynamic assessment is useful
- An injection or procedure is being planned
A systematic review found diagnostic ultrasound more reliable overall than clinical tests for confirming and excluding long-head biceps pathology, although partial tears remain challenging.
MRI or MR arthrography may be considered when:
- Rotator-cuff tearing is suspected
- Labral or pulley pathology is important
- A partial tendon tear is possible
- Surgical planning is underway
- Symptoms persist despite appropriate rehabilitation
Distal Tendon
Ultrasound or MRI may help distinguish:
- Tendinopathy
- Bicipitoradial bursitis
- Partial tendon tearing
- Complete rupture
- Tendon retraction
- Another anterior-elbow disorder
Imaging should not be delayed when an acute distal rupture is clinically suspected and timely surgical review may be relevant.
What Does the Evidence Say About Iontophoresis?
The Older Bicipital-Tendinitis Trial
An older randomized study enrolled 47 patients whose bicipital tendinitis was diagnosed using ultrasound.
Every participant received:
- Hot-pack treatment
- Therapeutic ultrasound
- A standard exercise program
One group also received hydrocortisone-acetate iontophoresis, while the comparison group received interferential current. Both groups improved immediately after treatment. The iontophoresis group retained improvements across more measured outcomes at the one-month follow-up.
Important limitations
| Limitation | Why it matters |
|---|---|
| Small sample | Results may not generalize to all patients |
| Older study | Diagnostic definitions and rehabilitation methods have changed |
| Multimodal care in both groups | The effect of iontophoresis cannot be isolated cleanly |
| Interferential current comparison | There was no true medication-free patch or exercise-only control |
| Hydrocortisone acetate used | Findings should not automatically be transferred to dexamethasone protocols |
| Short follow-up | Longer-term tendon capacity was not established |
| Proximal shoulder population | Results do not establish efficacy for distal biceps tendinopathy |
| No universal mA-min protocol established | The study’s current-and-time method does not validate Balego’s previous 40 mA-min schedule |
Contemporary Evidence Context
A 2024 scoping review identified only 14 eligible publications and concluded that evidence detailing conservative long-head biceps management remains sparse. Research studies disproportionately examined modalities, whereas reviews and expert guidance emphasized multimodal care, including exercise, education, manual therapy, and load modification.
In a separate Delphi study, 27 of 29 shoulder experts disagreed that iontophoresis was an effective routine intervention. The same panel strongly supported:
- Isometric, concentric, and eccentric biceps loading
- Progressive resistance exercise
- Rotator-cuff strengthening
- Scapular strengthening
- Open- and closed-chain exercise
- Reaching and lifting progression
- Overhead, occupation-specific, and sport-specific activity
- Activity and training modification
- Patient education
This consensus is not equivalent to randomized evidence, but it reinforces that iontophoresis should be optional and secondary to active care.
Practical Evidence Summary
| Question | Evidence-based interpretation |
|---|---|
| Can iontophoresis be considered for proximal biceps pain? | Yes, as a carefully selected adjunct, but evidence is limited |
| Is it proven as a first-line intervention? | No |
| Does one older trial show possible benefit? | Yes, but within a multi-intervention program |
| Is the evidence specific to dexamethasone? | No, the older trial used hydrocortisone acetate |
| Is there good evidence for distal biceps tendinopathy? | No direct condition-specific evidence was identified |
| Does expert consensus support routine use? | No |
| Is 40 mA-min established as the standard? | No |
| Should progressive loading remain central? | Yes |
Iontophoresis Is Not Equivalent to an Injection
| Feature | Iontophoresis | Tendon-sheath or regional injection |
|---|---|---|
| Skin puncture | No | Yes |
| Delivery route | Medication transported through intact skin using direct current | Medication delivered by needle into or near a selected structure |
| Anatomical precision | Influenced by skin, electrode position, medication, current, and tissue depth | Influenced by needle placement and imaging guidance |
| Ability to access deep intra-articular tissue | Limited | Potentially greater, depending on the procedure |
| Diagnostic value | Does not confirm which structure generated pain | A diagnostic injection may sometimes inform clinical reasoning, although spread can limit specificity |
| Main risks | Skin irritation, electrical burn, and medication reaction | Infection, bleeding, tendon exposure, and procedural complications |
| Proven equivalent? | No | No direct equivalence has been established |
Long-head biceps-sheath injectate may communicate with the glenohumeral joint, which also limits the assumption that pain relief precisely identifies the tendon as the only pain source.
When Iontophoresis May Fit
Consider it only when:
- The working diagnosis is reasonably clear
- The symptoms are focal
- A rupture has been excluded
- The skin is intact
- The treatment target can be covered completely
- The medication and polarity have been verified
- The patient is suitable for direct-current treatment
- Pain limits a specific rehabilitation activity
- A measurable functional objective has been selected
- The treatment is combined with progressive exercise
It is a weak clinical match when:
- Anterior shoulder pain is diffuse or poorly classified
- Rotator-cuff, labral, instability, or cervical findings dominate
- A proximal or distal rupture is suspected
- The distal target lies deep within the central antecubital fossa
- The electrode cannot remain flat
- Skin sensation is impaired
- The patient expects the modality to replace strengthening
- Prior applications produced no measurable functional benefit
Step-by-Step Biceps Iontophoresis Protocol
Step 1: Classify the Location
Document whether the treatment target is:
- Proximal long-head tendon in the bicipital-groove region
- A tendon-sheath–related anterior shoulder target
- Distal biceps region at the anterior elbow
- Another structure that should not be labeled biceps tendinopathy
Confirm that significant rotator-cuff injury, instability, rupture, fracture, or neurological disease has been considered.
Step 2: Define the Functional Objective
Examples include:
- Improve tolerance for introductory biceps loading
- Improve ability to reach overhead
- Improve lifting tolerance
- Improve carrying tolerance
- Reduce pain during a controlled supination exercise
- Improve participation in throwing rehabilitation
- Improve ability to use a hand tool
- Improve work-specific pulling capacity
“Reduce inflammation” is not a complete functional objective.
Step 3: Verify the Medication Order
Confirm:
- Medication
- Formulation
- Concentration
- Ionic polarity
- Prescribed electrical dose
- Medication volume
- Frequency
- Allergies
- Patient-specific precautions
- Compatibility with the selected delivery system
Medication is not included with iontophoresis controllers, electrodes, or patches.
Use our Iontophoresis Frequently Asked Questions for general polarity and mA-min education rather than reproducing it on this condition-specific page.
Step 4: Inspect the Skin
Check both electrode sites for:
- Cuts
- Rash
- Folliculitis
- Recent shaving
- Altered sensation
- Bruising
- Swelling
- Previous adhesive reaction
- Clothing or strap irritation
- Surgical scars
Do not “aggressively” scrub the skin as instructed on the previous page.
Preparation differs among products:
- Some wired electrode kits include alcohol preparation pads.
- IontoPatch instructions use soap and water and specifically advise against alcohol.
Follow the exact instructions supplied with the selected electrode or patch rather than applying one preparation method to every system.
Step 5: Select the Electrode Shape
Proximal shoulder
Select an electrode that:
- Fits the anterior shoulder contour
- Covers the localized groove-region target
- Holds the prescribed medication volume
- Does not extend unnecessarily toward the neck or chest
- Avoids the axillary crease
- Remains flat with the arm supported
- Is not compressed by clothing or straps
Distal elbow
Select an electrode that:
- Fits outside the deepest antecubital crease
- Covers the identified superficial treatment region
- Does not require blind placement over the entire cubital fossa
- Maintains contact during small amounts of elbow motion
- Avoids excessive pressure on the tendon or nearby structures
- Does not interfere with circulation or sensation
The distal tendon is deep and lies near important neurovascular structures. A surface electrode cannot be assumed to deliver medication precisely to the radial-tuberosity insertion.
Step 6: Prepare the Medication Electrode
For controller-based treatment:
- Prepare the electrode off the patient
- Use the prescribed medication volume
- Hydrate the complete drug matrix
- Avoid dry areas
- Avoid overfilling
- Confirm polarity
- Connect the correct controller lead
- Follow the electrode’s current and dose limits
Review our Iontophoresis Electrode Directions for Use for detailed filling, connection, polarity, and safety instructions.
Step 7: Position the Proximal Medication Electrode
For a localized long-head target:
- Support the arm comfortably at the patient’s side
- Palpate the clinically identified bicipital-groove region
- Center the medication matrix over the focal target
- Maintain full contact over the curved anterior shoulder
- Avoid the neck, chest, axillary fold, and damaged skin
- Confirm that light shoulder movement does not lift the electrode
- Do not use a broad anterior-shoulder placement when the pain source remains uncertain
The bicipital groove can be difficult to localize consistently because the humerus and tendon position change with shoulder rotation. Confirm the target before beginning.
Step 8: Position the Distal Medication Electrode
For a professionally confirmed distal target:
- Position the elbow in a comfortable, partially flexed position
- Localize the tendon-related symptom region
- Keep the medication matrix away from the deepest central crease when contact is unreliable
- Avoid forceful pressure
- Confirm full adhesive contact
- Stop if placement produces numbness, tingling, vascular change, or radiating symptoms
Do not perform iontophoresis when a partial or complete rupture has not been adequately excluded.
Step 9: Position the Return Electrode
Place the return electrode over a suitable intact ipsilateral muscle according to the product instructions.
Possible locations include:
- Posterior upper-arm triceps
- Lateral upper-arm musculature
- Forearm muscle mass when appropriate
The site should provide:
- Full contact
- Adequate separation
- Intact sensation
- No clothing pressure
- No table pressure
- Minimal lead-wire tension
Do not create a current path across the chest, neck, or head.
Step 10: Position the Patient
Proximal treatment
A supported seated or semi-reclined position may be used with:
- Arm resting at the side
- Forearm supported
- Shoulder relaxed
- No strap or garment over the electrode
- Both electrode sites accessible
Distal treatment
Support the forearm with:
- Elbow in comfortable partial flexion
- Minimal forearm rotation
- No pressure over the anterior elbow
- Lead wires slack
- Both sites visible
Repeated flexion, supination, or shoulder movement may disrupt contact.
Step 11: Deliver the Prescribed Dose
- Medication order
- Medication polarity
- Electrode limits
- Controller or patch limits
- Skin response
- Treatment location
- Patient tolerance
- Previous response
- Functional reassessment
The ActivaDose II Iontophoresis Dose Controller permits clinician selection of current and electrical dose while displaying treatment time. Its available operating range does not override lower limits imposed by the medication or connected electrode.
Step 12: Monitor the Patient
Ask the patient to report:
- Burning
- Sharp pain
- Increasing stinging
- Strong itching
- Electrode movement
- New tingling or numbness
- Arm discoloration
- Swelling
- Lead-wire pulling
- Unexpected shoulder or elbow symptoms
Pause and inspect the skin and setup when symptoms occur. Do not simply decrease current without determining the cause.
Step 13: Inspect and Document
Record:
- Working diagnosis
- Proximal or distal classification
- Rupture-screening findings
- Associated shoulder or elbow findings
- Medication
- Concentration
- Polarity
- Dose
- Current
- Treatment time
- Electrode or patch model
- Active-electrode location
- Return-electrode location
- Skin response
- Patient sensation
- Change in the baseline loading task
- Exercise progression
- Decision to continue, modify, or discontinue
Comparing Iontophoresis Options for Biceps Sites
This comparison focuses on anterior-shoulder and anterior-elbow fit. Full product specifications remain on the linked Balego pages.
| Balego option | Potential biceps-site advantage | Important limitation | Practical fit |
|---|---|---|---|
| ActivaDose II with Trivarion electrodes | Flexible Small and Butterfly options conform to curved or uneven sites such as the shoulder and elbow | Requires a controller, lead wires, and a relatively still treatment position | Strong controller-based choice when contour and direct monitoring are priorities |
| ActivaDose II with Ionto4 electrodes | Small and Butterfly choices support several target sizes and contours | Larger square options may bridge the anterior shoulder or elbow crease | Clinics wanting standardized carbon–Ag/AgCl treatment kits |
| ActivaDose II with buffered iontophoresis electrode kits | Multiple drug-electrode footprints with a buffered return-electrode workflow | Electrode size must still match the target; a large pad does not improve diagnostic precision | Clinics standardized on buffered-return systems |
| IontoPATCH wearable patches | Self-contained and free from external wires | Shoulder motion, clothing, sleep position, elbow flexion, and patch pressure may disturb extended wear | Selected sites that can remain flat and protected throughout the prescribed wear period |
| ACTIVApatch wearable patches | No-saline wearable formats offer several delivery-time options | Wireless operation does not overcome an uncertain or deep target | Clinician-directed wearable treatment when medication, model, and site are compatible |
Trivarion is marketed for curved and difficult anatomical regions, including the shoulder and elbow. IOGEL emphasizes elliptical tendon-oriented placement, while Ionto4 and buffered systems offer square and butterfly options.
For detailed wearable-model specifications, direct readers to our IontoPatch vs. ACTIVApatch comparison.
Progressive Rehabilitation Is the Foundation
The most consistent contemporary recommendations emphasize the following:
- Patient education
- Activity and training-load modification
- Isometric, concentric, and eccentric biceps loading
- Progressive resistance exercise
- Rotator-cuff strengthening
- Scapular strengthening
- Functional reaching and lifting
- Overhead and sport-specific progression
Stage 1: Modify the Most Provocative Load
Proximal symptoms
Temporarily modify:
- Repeated overhead reaching
- Throwing volume
- Swimming volume
- Heavy front raises
- Pulling from an extended shoulder position
- Carrying with the arm held forward
- Repetitive lifting above shoulder level
- Positions that produce tendon slipping or instability
Distal symptoms
Temporarily modify:
- Heavy palm-up lifting
- Forceful supination
- Pull-ups or curls that reproduce anterior-elbow pain
- Repetitive screwdriver or tool use
- Heavy eccentric lowering
- Sudden loaded elbow extension
- High-load pulling
Complete rest is not automatically required. Maintain comfortable motion and nonprovocative conditioning.
Stage 2: Introduce Tolerable Biceps Loading
Possible early options include:
- Isometric elbow flexion
- Isometric forearm supination
- Isometric shoulder flexion for proximal presentations
- Low-load elbow curls
- Controlled forearm rotation
- Supported shoulder motion
- Pain-limited rotator-cuff exercise
- Scapular-setting or low-load scapular exercise
Exercise selection and load should match the location, irritability, associated pathology, and patient goals.
Stage 3: Build Progressive Strength
Progress through selection:
- Concentric elbow flexion
- Eccentric elbow flexion
- Concentric and eccentric supination
- Shoulder-flexion loading
- Rows
- Rotator-cuff internal and external rotation
- Serratus-anterior exercise
- Middle- and lower-trapezius exercise
- Closed-chain shoulder loading
- Grip and forearm exercise when relevant
Balego resistance bands and tubing can support graded shoulder, scapular, elbow-flexion, and forearm-rotation exercises when elastic resistance matches the patient’s required load.
Stage 4: Restore Shoulder and Upper-Extremity Capacity
For proximal tendinopathy, progress toward:
- Loaded reaching
- Overhead lifting
- Carrying
- Pulling
- Swimming
- Throwing
- Racquet or paddle activity
- Work at or above shoulder level
When shoulder motion is restricted, an appropriately prescribed product from our Shoulder Pulleys and Range-of-Motion Collection may support active-assisted motion. A pulley should not be used merely because anterior shoulder pain is present; it is most appropriate when mobility is a demonstrated limitation.
Stage 5: Restore Speed, Deceleration, and Task-Specific Demand
An athlete or worker may need more than slow curls.
Later progression may include:
- Faster lifting
- Eccentric deceleration
- Throwing preparation
- Interval throwing
- Swimming-volume progression
- Repeated overhead work
- Pulling under fatigue
- Tool-use simulation
- Carrying and lowering
- Sport-specific drills
Progress one major variable at a time:
- Load
- Repetitions
- Speed
- Range
- Overhead position
- Frequency
- Fatigue exposure
Comparing Common Biceps Tendinopathy Treatments
| Treatment approach | Main purpose | Evidence position | Important limitation |
|---|---|---|---|
| Education and load modification | Reduce exposure exceeding current capacity | Strong expert consensus | Must be followed by graded restoration |
| Progressive biceps loading | Restore tendon and muscle capacity | Central active intervention | Requires individualized dosage |
| Rotator-cuff and scapular exercise | Address associated shoulder capacity | Strong expert consensus for proximal presentations | Should be based on identified impairments |
| Manual therapy | Modify pain or mobility barriers | May support a multimodal plan | Should transfer to active function |
| Iontophoresis | Deliver prescribed ionic medication through intact skin | One older positive trial but limited contemporary support | Does not restore tendon capacity |
| Therapeutic ultrasound | Passive modality | Common in older studies, contemporary support is weak | Should not replace exercise |
| Corticosteroid injection | Short-term medication delivery to a selected region | May be considered medically in selected patients | Invasive: depth, spread, and tendon exposure matter |
| PRP or other injection procedure | Attempt to influence tendon symptoms or healing | Evidence varies and remains uncertain | Cost, invasiveness, and protocol variability |
| Tenotomy or tenodesis | Surgical treatment for selected long-head pathology | Used after appropriate evaluation and failed conservative care | Surgical risks and postoperative rehabilitation |
| Distal tendon repair | Restore acute distal attachment | Often considered for active patients with complete rupture | Time-sensitive specialist decision |
Reassessment: What Meaningful Improvement Looks Like
Proximal Outcomes
- Reduced familiar bicipital-groove pain
- Improved shoulder elevation
- Improved sleeping tolerance
- Improved lifting and carrying
- Improved resisted elbow-flexion tolerance
- Improved resisted supination tolerance
- Improved rotator-cuff strength
- Improved overhead endurance
- Improved work or sport participation
Distal Outcomes
- Reduced anterior-elbow pain
- Improved supination strength
- Improved elbow-flexion strength
- Improved palm-up lifting
- Improved tool use
- Improved pulling tolerance
- Reduced next-day symptom escalation
Treatment Safety
- Acceptable skin response
- No blistering
- No spreading rash
- No new numbness
- No circulation change
- No medication reaction
- No new bruising or deformity
Reasons to Reconsider Iontophoresis
- No measurable functional improvement
- Repeated skin irritation
- Symptoms become diffuse
- Rotator-cuff or labral findings dominate
- Neurological symptoms develop
- Distal weakness increases
- Bruising or deformity appears
- The electrode cannot maintain full contact
- Passive treatment delays loading progression
- The diagnosis no longer supports biceps tendinopathy
Documentation Template
Clinical classification: Right/left proximal long-head biceps tendinopathy / distal biceps tendinopathy / other __________.
Differential diagnoses considered: __________.
Rupture screening: Mechanism, deformity, bruising, hook test, strength findings __________.
Associated shoulder or elbow findings: __________.
Focal treatment target: __________.
Baseline loading test: Test __________; load/range __________; pain __________.
Baseline functional measure: QuickDASH / Upper Extremity Functional Index / Patient-Specific Functional Scale / other __________.
Functional limitation: Symptoms limit __________.
Reason iontophoresis was selected: Localized symptoms interfere with __________.
Medication order: Medication __________; formulation __________; concentration __________; polarity __________.
Delivery system: Controller/patch __________; electrode model and size __________.
Placement: Medication electrode __________; return electrode __________.
Treatment details: Dose __________ mA-min, current __________ mA; time ___________.
Patient and skin response: __________.
Immediate functional response: __________.
Loading plan: __________.
Progression or referral criterion: __________.
For payer-oriented documentation guidance, link clinicians to our Iontophoresis Reimbursement Codes and Documentation Guide.
Frequently Asked Questions
What is biceps tendonitis?
It is a commonly used term for pain and dysfunction involving a biceps tendon. The more general term "biceps tendinopathy" recognizes that persistent symptoms may involve more than acute inflammation.
Where does proximal biceps tendinopathy hurt?
Symptoms commonly occur at the front of the shoulder near the bicipital groove, although rotator-cuff and labral conditions can produce similar pain.
Where does distal biceps tendinopathy hurt?
It generally produces deep anterior-elbow pain, often aggravated by resisted supination and elbow flexion.
Are proximal and distal biceps tendonitis treated the same way?
No. They involve different anatomy, differential diagnoses, loading demands, electrode-placement challenges, and rupture risks.
Does bicipital-groove tenderness prove biceps tendinopathy?
No. It supports the examination only when it reproduces familiar symptoms and matches the history, loading findings, and associated shoulder assessment.
Is Speed’s test accurate?
Speed’s test can contribute to an examination cluster, but its diagnostic performance is not strong enough to confirm or exclude long-head biceps pathology by itself.
Is Yergason’s test accurate?
It may help identify pain or instability related to the long-head tendon, but it should not be used as a standalone diagnosis.
Is the Lippman test still used?
It is historically described, but modern assessment generally places more emphasis on groove palpation, Speed’s, Yergason’s, upper-cut testing, associated shoulder tests, and imaging when needed.
Can ultrasound diagnose biceps tendinopathy?
Ultrasound can be useful for tendon instability and full-thickness injury and is generally more reliable than individual clinical tests. Partial tears remain more difficult to diagnose.
Can iontophoresis help proximal biceps tendonitis?
One small older trial reported better retained improvement when hydrocortisone iontophoresis was added to a multi-intervention program. Contemporary evidence remains limited, and iontophoresis should not replace exercise and education.
Can iontophoresis treat distal biceps tendinopathy?
Direct distal-biceps evidence is lacking. The tendon is also deep and close to important structures, making careful diagnosis and placement essential.
Is iontophoresis equivalent to a corticosteroid injection?
No. The routes, depth, anatomical precision, medication exposure, and risks differ.
Is dexamethasone included with the electrode?
No. Medication is supplied separately and requires professional direction.
Is 40 mA-min the standard biceps dose?
No. The previous page used 40 mA-min, but neither the older biceps study nor contemporary evidence establishes it as a universal dose.
How many iontophoresis treatments are required?
There is no evidence-based universal number. Continue only when a defined treatment trial produces meaningful functional improvement and acceptable skin tolerance.
Where is the medication electrode placed for proximal symptoms?
Over the small, professionally identified anterior-shoulder target—commonly near the bicipital-groove region—when the electrode can maintain full contact.
Where is the return electrode placed?
For controller-based treatment, it may be placed over a suitable intact ipsilateral upper-arm or forearm muscle according to the device and electrode instructions.
Can an iontophoresis patch be worn during shoulder exercise?
Only when allowed by the clinician and product instructions. Shoulder motion, perspiration, clothing, and straps may lift or compress a wearable patch.
What is a Popeye deformity?
It is a visible change in biceps muscle contour that may follow proximal tendon rupture. New deformity, bruising, or weakness warrants medical assessment.
What are the warning signs of distal biceps rupture?
A sudden pop, anterior-elbow bruising, deformity, and marked weakness in supination or elbow flexion require prompt orthopedic evaluation.
Should biceps tendinopathy be stretched?
Stretching may be used when a relevant mobility restriction exists, but aggressive stretching should not be automatically prescribed to every tendon presentation.
Are eccentric curls required?
No single contraction type is universally required. Isometric, concentric, and eccentric loading can all be incorporated according to irritability, strength, and functional goals.
When can overhead activity resume?
Resume progressively when shoulder motion, biceps loading, rotator-cuff capacity, and task-specific tolerance have improved without an unacceptable delayed flare.
When is surgery considered?
Surgery may be considered for selected long-head pathology after appropriate conservative care, significant instability, or structural disease and for many acute complete distal ruptures in active patients.
Clinical Takeaway
A biceps iontophoresis protocol should begin by identifying which biceps tendon is involved and whether the tendon is actually the principal source of pain.
Proximal long-head symptoms frequently coexist with rotator-cuff, subscapularis, pulley, labral, and instability disorders. Distal symptoms require careful screening for partial and complete rupture. Special tests should be used in clusters rather than treated as definitive diagnoses, and ultrasound can improve diagnostic confidence when the clinical examination is unclear.
Iontophoresis has limited and conflicting support:
- One older, small study reported possible added benefit.
- The study used hydrocortisone within a multi-intervention program.
- Modern reviews continue to identify major evidence gaps.
- Contemporary expert consensus does not support routine iontophoresis as a core biceps intervention.
When iontophoresis is selected, it should have a clear functional purpose, conservative site-specific placement, appropriate medication orders, and objective reassessment.
Long-term recovery depends on progressive biceps loading, associated shoulder or forearm strengthening, activity modification, and restoration of the lifting, reaching, overhead, sporting, or occupational demands that matter to the patient.
Explore our iontophoresis patches, electrodes, and dose controllers, review the Iontophoresis Electrode Directions for Use, or browse additional iontophoresis evaluation and treatment protocols.
