Balego NMES Manual: Setup, Modes & Troubleshooting

The Balego® EMS Digital Neuromuscular NMES Stimulator is a portable, dual-channel electrical muscle stimulation device that produces controlled muscle contractions with reusable electrodes placed on the skin.

This guide explains how to:

• Identify the controls and display settings.
• Install the battery and connect the accessories.
• Choose Constant, Synchronous, or Alternate mode.
• Adjust pulse rate, pulse width, ramp, and work-rest timing.
• Increase intensity correctly.
• End treatment and store the equipment.
• Diagnose weak, uncomfortable, or intermittent stimulation.

For condition-specific settings, electrode-placement protocols, and treatment applications, visit our NMES Protocols and Settings Guide library. Where relevant, this guide links to those subjects rather than repeating them here.

View the Balego EMS Digital NMES Stimulator

Important: This operating guide does not prescribe treatment. Electrode placement, stimulation parameters, intensity and session frequency should follow the device labeling and the instructions of a qualified healthcare professional.

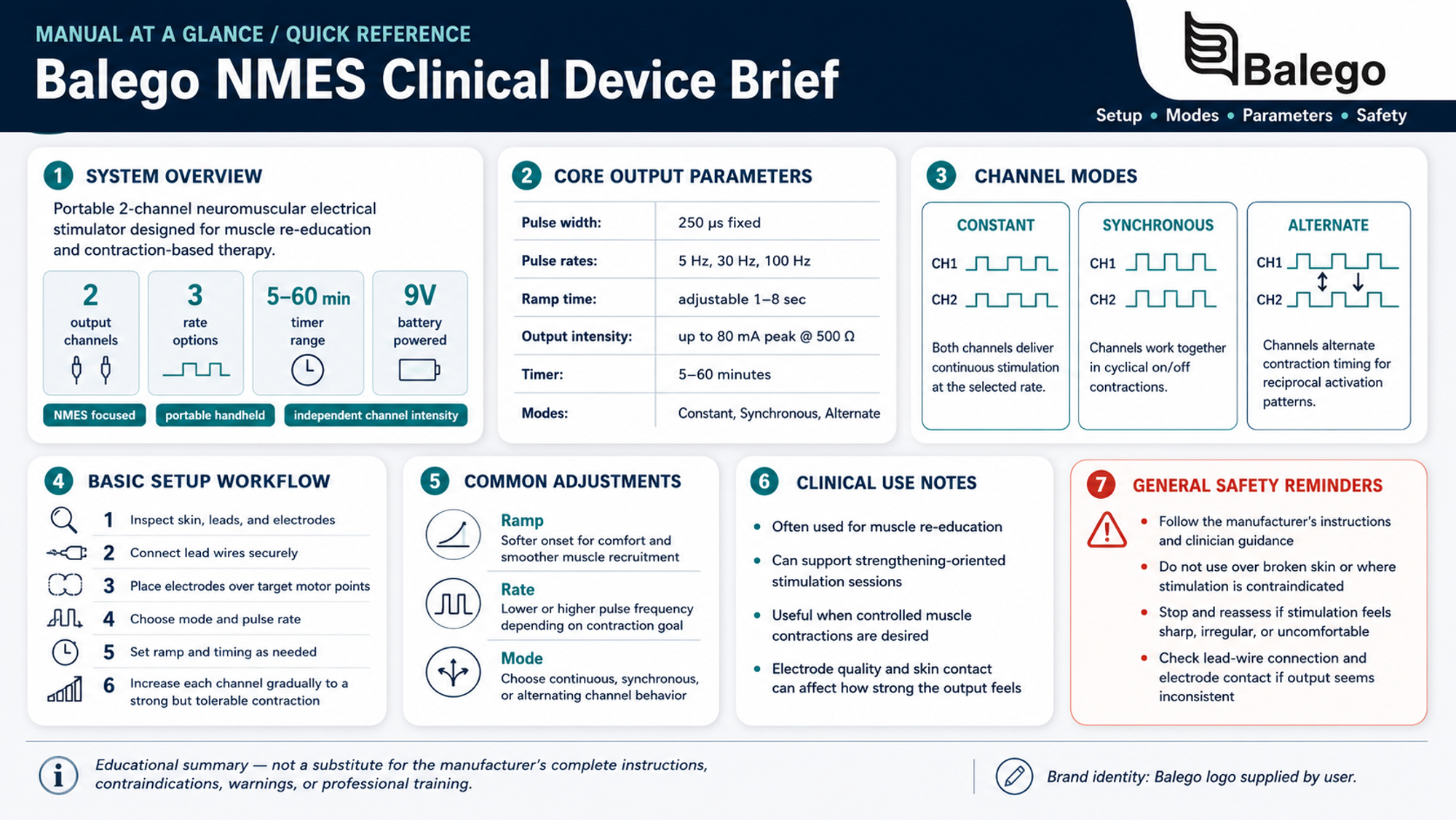

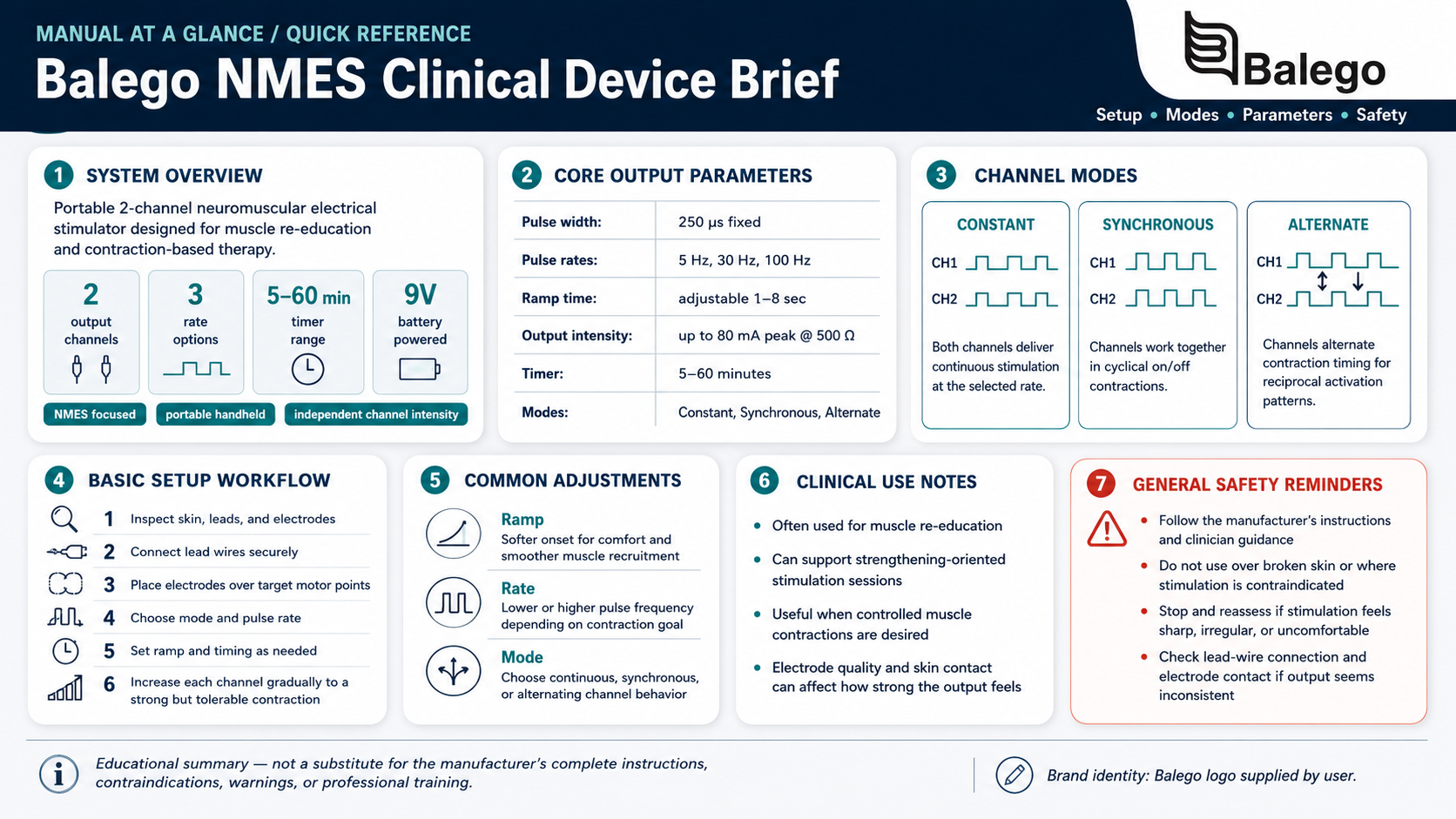

Balego NMES Quick Reference

The output shown in milliamperes is measured under a specified test load. During use, skin resistance, electrode contact, pad size, placement, and the selected pulse settings affect the amount of current actually delivered.

What Is the Balego EMS Digital Used For?

The Balego device is a dedicated NMES/EMS stimulator rather than a TENS-only pain-management unit.

NMES targets motor nerves with the goal of producing a visible or palpable muscle contraction. TENS is generally used at a sensory level for temporary pain modulation and ordinarily is not intended to create a forceful contraction.

For a detailed modality comparison, read TENS vs. NMES: Differences, Uses, and Device Guide.

The FDA defines a powered muscle stimulator as a medical device that uses electricity to repeatedly contract muscles by sending current through electrodes that touch the treatment area.

Before Using the Balego NMES Unit

Complete these checks first

1. Review the prescribed electrode placement and settings.
2. Make sure both intensity knobs are turned fully counterclockwise to OFF.
3. Inspect the device housing and output sockets.
4. Inspect the lead wires for cracks, exposed conductors, or loose pins.
5. Inspect each electrode for dried gel, curled edges, or damaged backing.
6. Clean and dry intact skin.
7. Connect all leads and electrodes before turning on either channel.
8. Position the wires so movement will not pull on the pads.
9. Confirm that the correct stimulation mode is displayed.
10. Increase intensity only after the electrodes are firmly attached.

Never connect or disconnect electrodes while stimulation intensity is turned up.

Essential safety restrictions

Do not use electrical muscle stimulation:

• With a cardiac demand pacemaker unless expressly cleared by the responsible medical specialist and device labeling.
• Across the chest.
• Over the front or sides of the neck.
• Through the head.
• Over infected, inflamed, broken, or markedly irritated skin.
• Over or near a known cancerous lesion.
• While driving, operating machinery or performing an activity in which an unexpected contraction could cause injury.

Stop treatment if stimulation produces burning, sharp pain, significant skin irritation, dizziness, breathing difficulty, or another unexpected reaction.

The supplied electrodes are intended for individual-patient use. The stimulator itself is reusable and should not be discarded simply because an electrode has worn out. Replace the electrodes or lead wires as needed. The current live article’s instruction to dispose of “the device” appears to conflate the reusable stimulator with its single-patient accessories.

Balego NMES Controls and Display

Top controls

The two intensity knobs perform two functions:

• Turning either knob clockwise switches its channel on and raises output.
• Turning both knobs fully counterclockwise switches the device off.

Each channel is independently adjustable. Channel 1 can therefore operate at a different intensity from Channel 2 even when both channels follow the same timing cycle.

Programming controls

The protective front cover helps prevent accidental changes once the session has begun.

Common display information

Depending on the selected mode, the LCD may show the following:

• Stimulation mode
• Pulse rate
• Pulse width
• Ramp duration
• On time
• Off time
• Treatment time
• Remaining treatment time
• Channel activity
• Low-battery indication

Always confirm the full screen rather than relying on one value. A pulse rate of 50 Hz, for example, does not reveal whether the device is in constant, synchronous, or alternate mode.

How to Install the 9V Battery

1. Make sure both intensity controls are in the OFF position.
2. Open the battery compartment on the back of the unit.
3. Connect a compatible 9V battery using the correct polarity.
4. Place the battery and connector inside the compartment without pinching the wires.
5. Close the compartment securely.
6. Turn one intensity control slightly clockwise to verify that the LCD powers on.
7. Return the knob to OFF before connecting the patient leads.

The device does not contain an internal charging circuit. Never connect a charger to the stimulator in an attempt to charge the battery while it is installed.

A compatible rechargeable 9V battery may be charged only in its own external charger and used according to the battery manufacturer’s instructions. Battery runtime varies with treatment time, intensity, selected settings, and battery chemistry.

Remove the battery if the stimulator will be stored for an extended period. This reduces the risk of leakage damaging the battery contacts.

How to Connect the Lead Wires and Electrodes

Each channel uses one bifurcated lead wire ending in two electrode pins. A complete channel therefore requires two connected electrodes.

Connection sequence

1. Keep both intensity knobs in the OFF position.
2. Insert the lead-wire plug fully into the Channel 1 or Channel 2 socket.
3. Connect each pin at the other end of the wire to one electrode pigtail.
4. Remove the electrodes from their protective liner.
5. Apply both electrodes to clean, dry skin as directed.
6. Press across the entire electrode surface to remove lifted edges.
7. Repeat for the second channel when required.
8. Confirm that no metal pin is exposed.

Hold the insulated plug when disconnecting a wire. Pulling directly on the cable can damage the internal conductor even when the outer insulation still appears intact.

Replacement 45-inch TENS and NMES lead wires use a shielded device plug and standard pin-style electrode connectors compatible with many portable stimulators. Confirm compatibility with the unit before ordering.

One channel or two?

Using more electrodes does not automatically produce a better contraction. Placement, electrode size, pad contact, intensity, and the condition of the motor nerve all affect the response.

For clinical placement examples, use the Balego NMES protocol library rather than guessing from a generic body chart.

How to Program the Balego NMES

General programming sequence

1. Connect the battery, lead wires, and electrodes.
2. Turn one intensity knob slightly clockwise until the screen activates.
3. Keep the intensity at its minimum while programming.
4. Press MODE until the intended mode appears.
5. Press SET to select the first adjustable parameter.
6. Wait for the value to flash.
7. Use the up or down arrow to change it.
8. Press SET again to move to the next parameter.
9. Review every value after programming.
10. Increase the active channel intensity gradually.

The unit stores the selected values shortly after programming. Pause briefly after changing a parameter before proceeding or switching the device off.

Which settings appear in each mode?

This table describes which controls are relevant to each operating pattern. It does not recommend particular clinical values.

Our separate Popular Clinical NMES Settings guide discusses possible clinician-directed starting points.

Constant, Synchronous and Alternate Modes

Constant mode

Constant mode provides ongoing pulses according to the selected pulse rate and pulse width. It does not create a programmed work-rest cycle.

Constant mode should not be confused with constant intensity. The perceived output may still vary when electrode contact, body position, or skin resistance changes.

The unit can be set to a nominal 20 Hz in constant mode because its adjustable pulse-rate range extends from 2 to 150 Hz. This addresses the specific posed question in Can the Balego EMS Digital Deliver Constant 20 Hz?.

Synchronous mode

Synchronous mode turns both active channels on and off together.

During each work cycle:

1. Output rises during the ramp-up period.
2. Both channels stimulate during the contraction period.
3. Output falls during ramp-down.
4. Both channels rest during the off period.

This mode is commonly selected when two electrode pairs are intended to activate simultaneously, but the correct application depends on the professional treatment plan.

Alternate mode

Alternate mode causes the two channels to take turns.

A typical sequence is

1. Channel 1 ramps up and stimulates.
2. Channel 1 ramps down.
3. Channel 2 ramps up and stimulates.
4. Channel 2 ramps down.
5. The cycle repeats.

An alternate mode may be used when the plan calls for alternating activity between two muscles, two sides, or two electrode arrangements.

Mode comparison

For a more detailed explanation of the terminology, read Balego NMES Settings Explained: Ramp, Alternate, and Constant.

Understanding the Adjustable Settings

Pulse rate

Pulse rate is measured in hertz and describes how many pulses are delivered each second.

• The Balego NMES range is 2–150 Hz.
• A higher displayed number means pulses occur more frequently.
• Pulse rate affects whether the response feels like separate twitches or a more sustained contraction.
• Higher frequency is not automatically better and may contribute to faster fatigue.

Pulse width

Pulse width is measured in microseconds and describes how long each individual pulse lasts.

• The adjustable range is 50–300 microseconds.
• A wider pulse can recruit motor nerves more strongly at the same intensity setting.
• Pulse width, intensity, and electrode placement interact.
• A change in pulse width can make the same knob position feel substantially different.

Ramp

Ramp controls how gradually the output rises into and falls out of a contraction.

• The range is 1–8 seconds.
• A short ramp produces a quicker transition.
• A longer ramp creates a more gradual transition.
• The ramp is used in synchronous and alternate modes.

Ramp does not describe the total contraction time. It is one part of the programmed on period.

On time

"On time" is the contraction or work portion of the cycle.

• The range is 2–90 seconds.
• Ramp-up and ramp-down occur within the programmed contraction cycle.
• The selected time must be long enough to accommodate the ramp transitions.

Avoid programming a long ramp with an on period that is too short to reach and maintain the intended contraction.

Off time

Off time is the programmed rest interval.

• The range is 0–90 seconds.
• Longer rest periods may be used when fatigue is a concern.
• The appropriate work-rest ratio depends on the treatment objective and muscle response.
• In Alternate mode, the manual requires the off time to be equal to or longer than the on time.

Timer

The timer controls the total session duration.

• Selectable range: 1–60 minutes.
• A continuous setting is also available.
• When a timed session expires, output stops.
• Continuous operation should be used only when specifically appropriate to the prescribed plan.

Timing Rules That Prevent Programming Problems

How to Increase Balego NMES Intensity

Intensity is controlled by the two rotary knobs at the top of the device.

1. Confirm that the electrodes are completely attached.
2. Begin during an active part of the stimulation cycle.
3. Turn the intended channel knob clockwise slowly.
4. Pause after each small adjustment.
5. Observe the muscle and ask about comfort.
6. Continue only to the level specified by the treatment plan.
7. Adjust the second channel independently when used.
8. Reduce output immediately if the sensation becomes sharp, burning, or intolerable.

Is each mark on the knob a specific number of milliamperes?

No. The dial should not be interpreted as a simple “one mark equals a fixed number of milliamperes” scale.

The delivered and perceived stimulation depends on:

• Electrode size
• Electrode age and gel condition
• Skin preparation
• Pad placement
• Distance between electrodes
• Pulse width
• Pulse rate
• Body area
• Tissue resistance
• Lead-wire condition
• Individual sensitivity

A user may therefore feel a strong response near the beginning of the dial even though another stimulator appeared to require a much higher displayed setting.

We explain this question in detail in Why the Balego NMES Feels Strong at Low Intensity.

Electrode Selection and Contact

Good electrode contact helps distribute the stimulation across the pad’s conductive surface. Poor contact can concentrate sensation near an edge and make stimulation feel sharp or inconsistent.

Replace an electrode when it:

• Repeatedly lifts from clean, dry skin.
• Has dried or uneven hydrogel.
• Has curled edges that will not flatten.
• Produces localized stinging despite proper setup.
• Has a damaged pigtail or connector.
• Is contaminated with oil, lotion, or excessive lint.
• No longer provides dependable adhesion.

For compatible replacement pads, compare Balego reusable TENS, NMES, and FES electrodes or browse the complete electrotherapy electrode collection.

Research on NMES has also found that electrode size and placement affect both comfort and the muscle response, supporting the need to treat electrode selection as part of the setup rather than as an interchangeable accessory.

Basic skin preparation

• Wash away lotion, oil, and perspiration.
• Dry the skin fully.
• Clip excessive hair when necessary rather than shaving immediately before stimulation.
• Do not apply pads over broken or irritated skin.
• Smooth each electrode from the center toward the edges.
• Remove a pad by lifting its edge—not by pulling its pigtail or lead wire.
• Return reusable pads to their protective liner after use.

How to End a Treatment Session

1. Turn the channel 1 intensity fully counterclockwise.
2. Turn the Channel 2 intensity fully counterclockwise.
3. Please confirm that the screen and output are off.
4. Remove each electrode by lifting from its edge.
5. Do not pull on the electrode pigtails or lead wires.
6. Check the skin for persistent redness, irritation, or burns.
7. Return each pad to the protective liner.
8. Seal the electrodes in their storage bag.
9. Disconnect lead wires by holding their insulated plugs.
10. Store the unit and accessories in the carrying case.

Mild temporary redness may occur under an electrode, but persistent redness, significant irritation, blistering, or burning requires discontinuation and appropriate medical advice.

Compliance Meter and Treatment History

The Balego NMES includes a treatment-record function intended to help track use.

According to the device information, it can retain:

• Up to 60 treatment records.
• Up to 999 cumulative treatment hours.

A compliance record can help a clinician determine whether sessions occurred, but it does not establish the following:

• The electrodes were placed correctly.
• The prescribed intensity was reached.
• A useful contraction occurred.
• The correct person used the device.
• The treatment was clinically effective.

Use the exact button sequence in the supplied printed instructions when viewing or clearing records. Avoid deleting cumulative history unless the responsible clinician or facility intends the record to be reset.

Balego NMES Troubleshooting

A fast circuit test

When one channel appears not to work:

1. Turn both channels off.
2. Exchange the lead wires between Channel 1 and Channel 2.
3. Reconnect the electrodes securely.
4. Turn up one channel slowly.
5. Observe whether the problem follows the lead wire or remains with the device channel.

If the problem follows the wire, please replace the lead wire. If the same output socket repeatedly fails with known-good accessories, discontinue use and contact Balego rather than opening the device.

Why NMES May Not Produce a Contraction

A lack of visible contraction does not necessarily mean the unit is defective.

Possible explanations include the following:

Do not continue increasing intensity without limit when no contraction occurs. Stop and have the electrode placement, nerve status, and programming evaluated by the responsible professional.

Cleaning, Storage and Inspection

Clean the stimulator

• Switch the unit off.
• Disconnect the electrodes and lead wires.
• Wipe the housing with a lightly dampened cloth.
• Do not immerse the stimulator.
• Do not allow liquid into the output sockets, controls, or battery compartment.
• Do not use abrasive cleaners or strong solvents.

Store the electrodes

• Return each pad to its original liner.
• Place the pads in a sealed storage bag.
• Store them in a cool, dry location.
• Do not leave them exposed to air or direct sunlight.
• Replace them when adhesion or conductivity becomes unreliable.

Weekly inspection

Inspect:

• Device housing
• Battery compartment
• Output sockets
• LCD visibility
• Intensity controls
• Lead-wire insulation
• Lead pins and plugs
• Electrode gel and backing
• Carrying case

Do not open the stimulator or attempt an internal repair. If the housing is cracked, a socket is loose or the device behaves unpredictably with known-compatible accessories, remove it from use and contact the distributor.

Balego NMES vs. Other Portable Stimulators

This comparison focuses on operating format rather than repeating the full specifications already available on each product page.

The Balego EMS Digital is the most direct choice in this group when the main requirement is a compact, dedicated NMES device with manually adjustable contraction and rest parameters. A combination unit may be preferable when the same user also needs TENS, interferential, or Russian-stimulation programs.

Browse all NMES units and EMS muscle stimulators.

Frequently Asked Questions

Is the Balego unit a real NMES device or a TENS unit?

It is a dedicated NMES/EMS muscle stimulator. Its primary operating purpose is motor-level stimulation and controlled muscle contraction. It does not include separate TENS programs.

How many electrodes are required?

Each active channel requires two electrodes. Use two pads for one channel or four pads when both channels are active.

Can I use only one channel?

Yes. One channel can operate independently with one connected electrode pair. Leave the unused channel turned fully off.

Can the two channels have different intensities?

Yes. Each channel has a separate output knob. The timing pattern is determined by the selected mode, while intensity is adjusted independently.

Can the channels use different pulse rates or pulse widths?

No. Both channels follow the programmed pulse settings. Their intensity can differ, but they do not run separate frequency or pulse-width programs.

Why does the unit feel strong near the beginning of the dial?

The dial is not a calibrated level-by-level milliampere display. Fresh electrodes, low skin resistance, wider pulse width, placement, and individual sensitivity can make stimulation feel strong at a low knob position.

What is the difference between "synchronous" and "alternate"?

Synchronous mode activates both channels together. Alternate mode causes Channel 1 and Channel 2 to take turns.

What does ramp mean?

Ramp is the time over which output gradually increases into and decreases out of a contraction. It can make the transition smoother but is not the same as the full-on time.

What does on time mean?

On time is the programmed contraction portion of a synchronous or alternate cycle.

What does "off time" mean?

Off-time is the programmed recovery interval between contractions. In alternate mode, it must be equal to or longer than the on time.

Can the unit provide continuous 20 Hz stimulation?

Yes. The pulse rate can be set to a nominal 20 Hz in constant mode, with the timer set to an appropriate duration or continuous operation when professionally directed.

Does the Balego NMES recharge?

The stimulator does not contain an internal rechargeable battery or charging circuit. It operates from a replaceable 9V battery. A compatible rechargeable 9V battery must be removed and charged in its own external charger.

How long does the battery last?

Runtime varies with battery type, session duration, output intensity, pulse settings, and whether one or both channels are active. Replace the battery when the low-battery symbol appears or output becomes unreliable.

Why does the muscle stop contracting even though the device is on?

The unit may be in synchronous or alternate mode and currently within its programmed off period. Review the screen and timing cycle before raising the intensity.

Can I change settings during treatment?

Reduce intensity before making substantial parameter changes. Changes to pulse width, rate, or timing can alter the strength and character of the stimulation.

Can it be used for foot drop, quadriceps activation, or calf stimulation?

NMES may be included in clinician-directed programs for these goals, but placement and settings differ. Use our NMES Protocols and Settings Guides rather than treating one setup as universal.

Where can I obtain replacement pads?

Compare Balego reusable stimulating electrodes or browse the complete electrotherapy electrode collection.

Related Balego NMES Resources

• Balego EMS Digital NMES Stimulator
• NMES Protocols and Settings Guides
• Popular Clinical NMES Settings for the Balego EMS Digital
• Balego NMES Settings: Ramp, Alternate and Constant
• Why Balego NMES Feels Strong at Low Intensity
• Can NMES Support Calf and Thigh Circulation?
• TENS vs. NMES: Differences, Uses and Device Guide
• Electrotherapy Electrodes and NMES Pads
• Device Manuals, Setup Guides, Safety and Specifications
